CNC Busbar Machines for Copper and Aluminium – Punching, Shearing and Bending

LT designs and builds CNC machines for punching, cutting, bending and milling copper and aluminium busbars. For panel builders, switchgear manufacturers and transformer producers we supply a complete line: HQ600 punching and shearing machines, HQ400 CNC bending machines, 3-in-1 combined machines and chamfering and milling centres, all CE marked and delivered with Italian and English manuals.

15,000 m² production site
30+ in-house machine tools
ISO and CE certified
10+ years in the industry
Technical support in Italian and English

Application industries

Where our busbar processing machines are used

Low and medium voltage switchgear

Building low and medium voltage switchgear requires repeatable holes, slots and bends on copper busbars. Our CNC punching and bending machines hold constant tolerances across serial batches, removing manual correction and the copper scrap typical of bench work.

Busbars up to 15×200 mm and 16×200 mm
Positioning 0.10 mm over 500 mm
Automatic cycles with no repositioning

Transformers and prefabricated substations

In transformers and prefabricated substations, connection busbars need flat contact surfaces and low-resistance joints. The CNCMN-200A CNC busbar chamfering and milling centre prepares bar ends with ±0.08 mm accuracy.

Bar lengths from 150 to 6000 mm
Thicknesses from 4 to 16 mm
Repeatable chamfers for bolted joints

Power distribution and busway systems

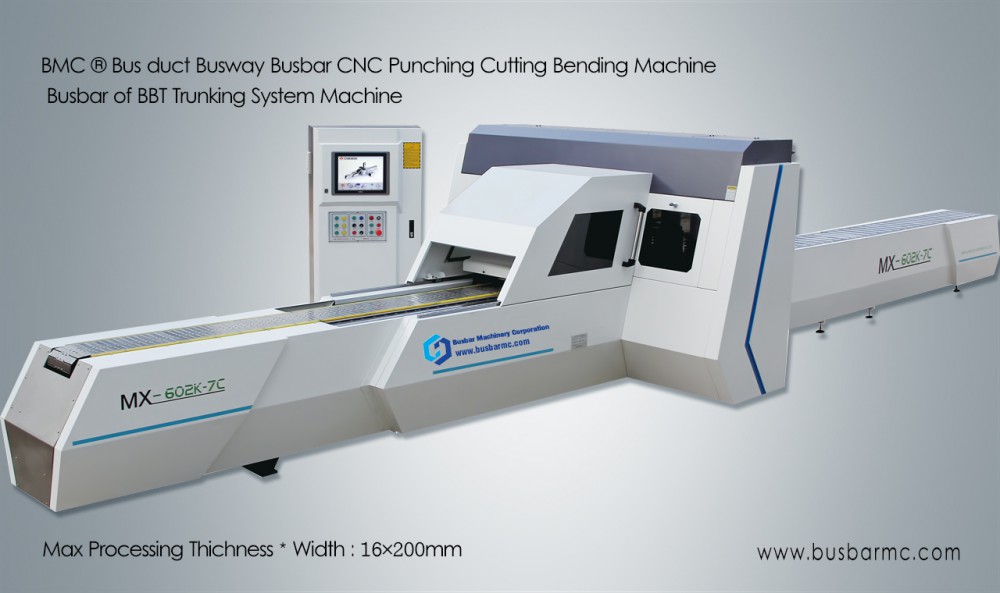

Busway systems need long, accurate, continuous punching on bars up to 6 metres. Our 8-station punching machines with automatic feeding finish complete batches without tool changes, using dedicated loading and unloading stations.

Bars up to 6000×200×15 mm
Linear turret with 8 die stations
Loading station 3000 mm, unloading 2500 mm

Why choose LT

Five reasons panel builders choose our machines

Certifications

ISO certified quality system, CE marking across the whole range and numerous technical and design patents. Conformity documentation and manuals in Italian and English are supplied with every machine.

Manufacturing capability

Over 15,000 m² of plant with more than 30 machine tools: CNC machining centres, CNC lathes, large radial drilling machines, large surface grinders and wire cutting machines. More than 50 workers on the shop floor.

Core configuration

Selected, replaceable components: Juli or ABB main motors, Taiwan Hydromax or American Albert hydraulic pumps, servo motors on the axes and an imported PLC control on the bending unit.

Export experience

More than 10 years in business with machines installed in Russia, India, South Korea, Myanmar, Laos, Vietnam, Kazakhstan, the Philippines, Cambodia, Canada and Australia, alongside the European and Italian markets.

After-sales service

Dedicated teams of technical, sales and service engineers. Installation, acceptance testing, operator training, free remote diagnostics and spare parts shipped within 48 hours.

Factory and quality capability

How we build and how we test every machine before shipment

Factory video

The LT plant covers over 15,000 m² and employs more than 50 people across the workshop, engineering office and service department. Request the full video of the assembly line and final acceptance test.

See the factory

Equipment capability

CNC machining centres
CNC lathes
Large radial drilling machines
Large surface grinders
Wire cutting machines

More than 30 machine tools dedicated to in-house component production.

Testing process

Every machine is tested before shipment: rated force verification, axis positioning accuracy check, test cycle on sample copper and aluminium bars and recording of the working parameters.

Certifications and patents

ISO system certification, CE product marking and numerous technology and design patents. After more than 10 years of development the company has an established team of technical, sales and service engineers.

Customer case studies

Industry, country, machine installed, problem, solution and result

ABB – busway production line for the Indian subsidiary

Industry: Busway systems and power distribution
Country / region: India (ABB subsidiary)
Machine installed: CNC busway processing machine with automatic feeding
Problem: Long, continuous punching on bars up to 6 metres, frequent diameter changes and tolerances to hold across very large batches
Solution: Linear turret with 8 die stations, X axis positioning at 75 m/min and dedicated loading and unloading stations
Result: Tool change time cut by 80% against a single-station punching machine and positioning accuracy of 0.10 mm over 500 mm

Schneider Electric – busbar processing

Industry: Low and medium voltage switchgear
Country / region: Europe, group supply
Machine installed: CNC busbar machining centre
Problem: Multi-variant production with long changeover times and a need to trace working parameters
Solution: CNC programming with a part library, interchangeable dies and acceptance testing on customer sample bars
Result: Constant tolerances across serial batches and no manual correction during assembly

Siemens – installation and support across Europe

Industry: Switchgear and industrial distribution
Country / region: Europe and Italy
Machine installed: CNC busbar punching and cutting centre
Problem: Commissioning compliant with European standards and operator training across several production sites
Solution: On-site installation and acceptance testing, operator training and specialist remote technical support
Result: Production start-up without line stoppages and compliance with the CE requirements of the European market

Fuji – industrial automation components

Industry: Industrial automation and electrical components
Country / region: Asia
Machine installed: Copper and aluminium busbar processing line
Problem: A single supplier for punching, cutting and bending with uniform quality
Solution: Complete range supplied by one manufacturer, with centralised spare parts and service
Result: Standardised working parameters across the line and fewer suppliers to manage

ABOUT US

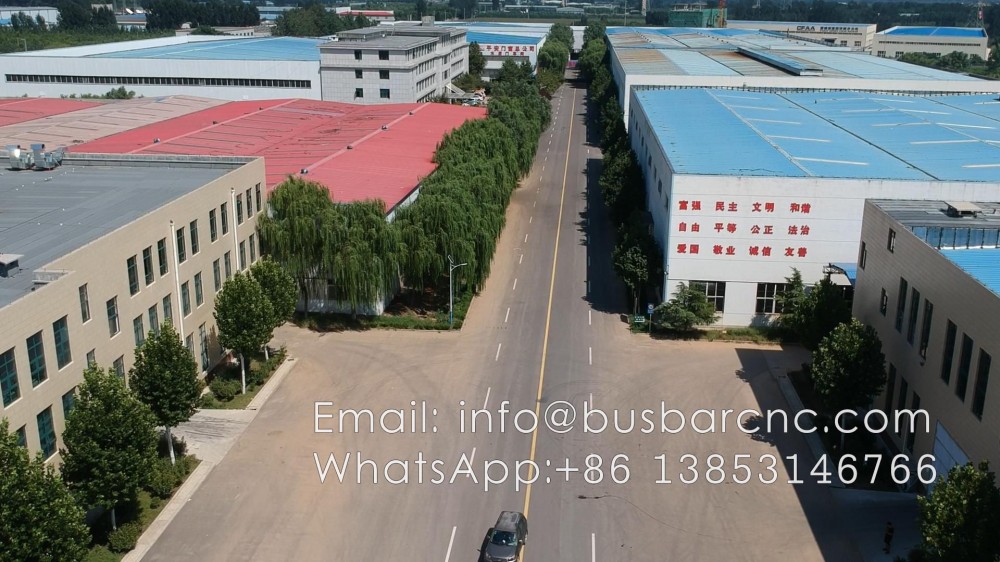

Company profile

LJMC is built in the year of 2003.with independent legal person qualification.Area covered over 13000㎡with area of structure 10000㎡,now with processing equipments more than 50 sets.including CNC machining center, CNC lathe, CNC milling machine, large radial drilling machine, large surface grinder, line cutting.The factory is focus on the developmen···

View details

Frequently asked questions

Answers to the questions we hear most from panel builders

How long do installation and operator training take?

Standard commissioning takes 1 to 3 working days and covers mechanical installation, hydraulic and electrical connection, acceptance testing and operator training. For 3-in-1 combined machines the acceptance test is run on sample busbars supplied by the customer.

Are the machines CE certified?

All LT machines are supplied with CE marking, a declaration of conformity and English or Italian manuals. The company is ISO certified and holds technical and design patents.

What accuracy is guaranteed when processing copper busbars?

Positioning accuracy is 0.10 mm over 500 mm on the X and Y axes, with punching accuracy of ±0.2 mm. On CNC bending machines positioning accuracy is ±0.15 mm and bending angle accuracy is ±0.3 degrees.

Do you supply spare parts and technical support for Europe?

The spare parts stock covers punches, dies, milling cutters and proximity sensors, shipped within 48 hours. Remote technical support is free and covers diagnostics, working parameters and operator training.

What busbar thickness and width can the machine handle?

The range covers busbars from 4 to 16 mm thick and 30 to 200 mm wide, up to 6000 mm long. HQ600 models reach 15×200 mm and the 503U-3-C series reaches 16×200 mm.

What are the delivery times?

Standard models are available in 15 to 25 working days. Sea freight to European ports takes approximately 30 to 35 days, with wooden case packing and complete customs documentation.
